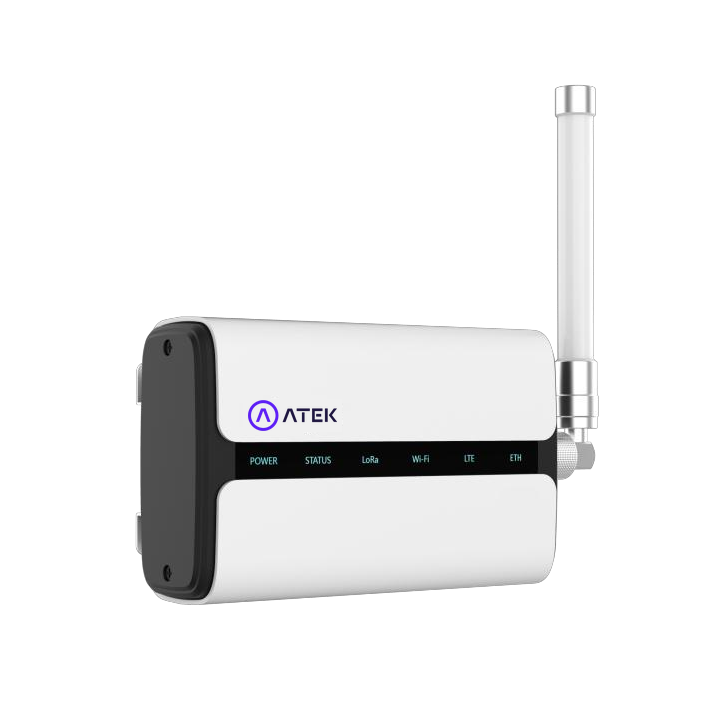

ATEK Semi-Industrial 8-Channel LoRaWAN Gateway with Embedded Network Server (UG65)

The ATEK UG65 is a semi-industrial 8-channel LoRaWAN gateway with a built-in network server and an IP65 enclosure for sheltered outdoor and semi-industrial sites. It supports around 2,000 nodes and integrates in minutes without an external LNS.

• 8 half/full-duplex channels (SX1302-class), typ. 2.9 W; embedded network server, LoRaWAN v1.0 / v1.0.2 Class A/B/C
• Triple-backhaul redundancy with WAN failover across Ethernet (PoE PD), Wi-Fi 2.4 GHz, and optional 4G LTE
• Northbound BACnet/IP, BACnet/SC, Modbus TCP, MQTT(s), HTTP(s); ChirpStack, The Things Stack, Actility, AWS
• IP65 PC+ABS (UL94 V0) enclosure, -40 to +70 °C; 802.3af PoE, DC 9-24 V, or USB-C power; desktop/wall/pole mount
• LoRaWAN bands EU868 / US915 / AU915; CE/RED, RCM, Telec, JATE, RoHS certified

Download the datasheet (PDF)
