Min-Max display

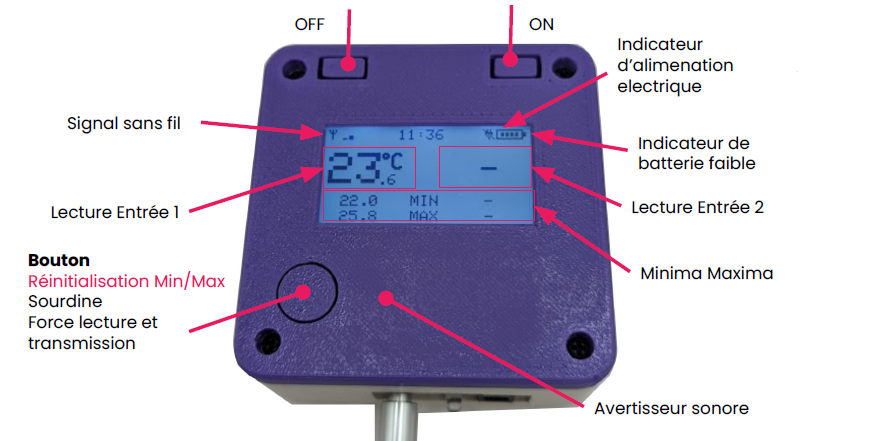

DESCRIPTION The transmitter display is configurable to meet the needs of different customers. In a pharmacy, for example, the display shows the current temperature in addition to the minimum and maximum since the last reset. During a calibration on the ATEK platform, temperature deviations are

DESCRIPTION

The transmitter display is configurable to meet the needs of different customers. In a pharmacy, for example, the display shows the current temperature in addition to the minimum and maximum since the last reset.

During a calibration on the ATEK platform, temperature deviations are automatically reported on the display which allows you to have confidence in the readings displayed.

FUNCTIONING

  1. Button is pressed

    • First “beep”

    • Takes 10 sensor readings and transmits the data .

    • Silences local audio alarms for 60 minutes

  2. Button is pressed for 5 seconds

    • At the second “beep”, the min/max of the display is reset

APPS

  • Pharmacy

  • Vaccination
