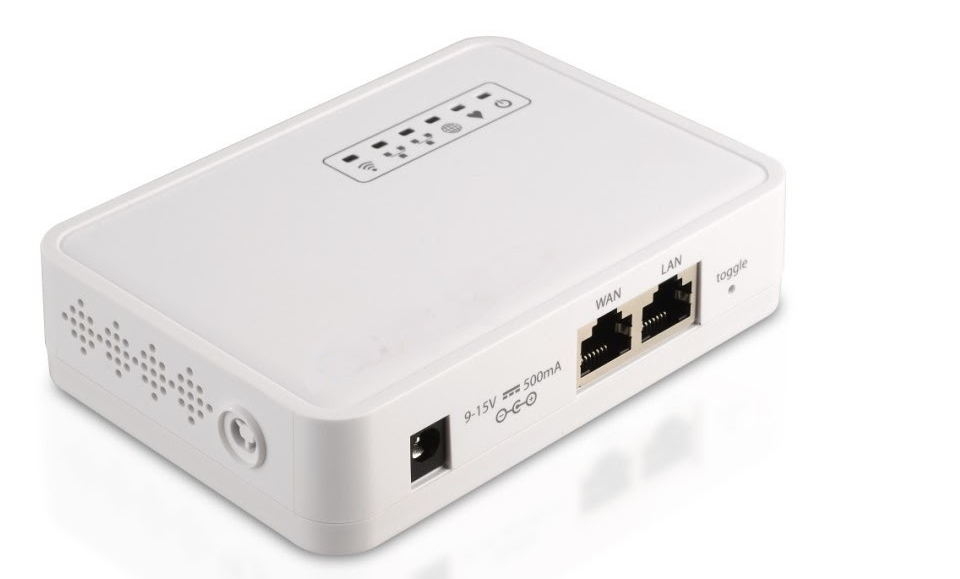

The ATEK gateway serves as a data bridge for ATEK ZigBee, WIFI, LoRa or Bluetooth transmitter networks.

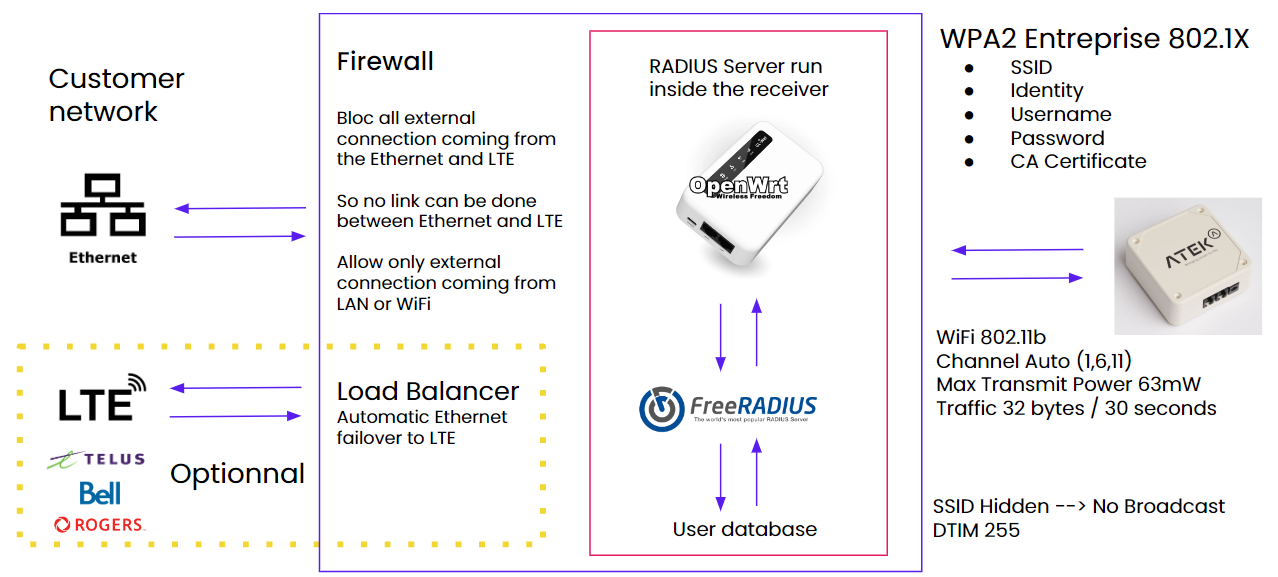

The ATEK gateway is a router running the OpenWRT operating system and is configured according to customer requirements to provide a secure IT link between the transmitters installed at the customer and the ATEK cloud infrastructure.
Potential problems
Electrical Failure — receiver is disabled.
Solution: The receivers are connected to a Battery Pack to continue to be powered even in the event of a breakdown.
Network wire disconnections — receiver is disabled.
Solution: Use of cell-switching receivers.
Network configuration changes — for example, implementing a proxy without notifying us.
Solution: Configure changes
Outages linked to the DNS or Proxy server — the entire healthcare network can be affected
Solution: Use of cell-switching receivers.
IT REQUIREMENTS
-

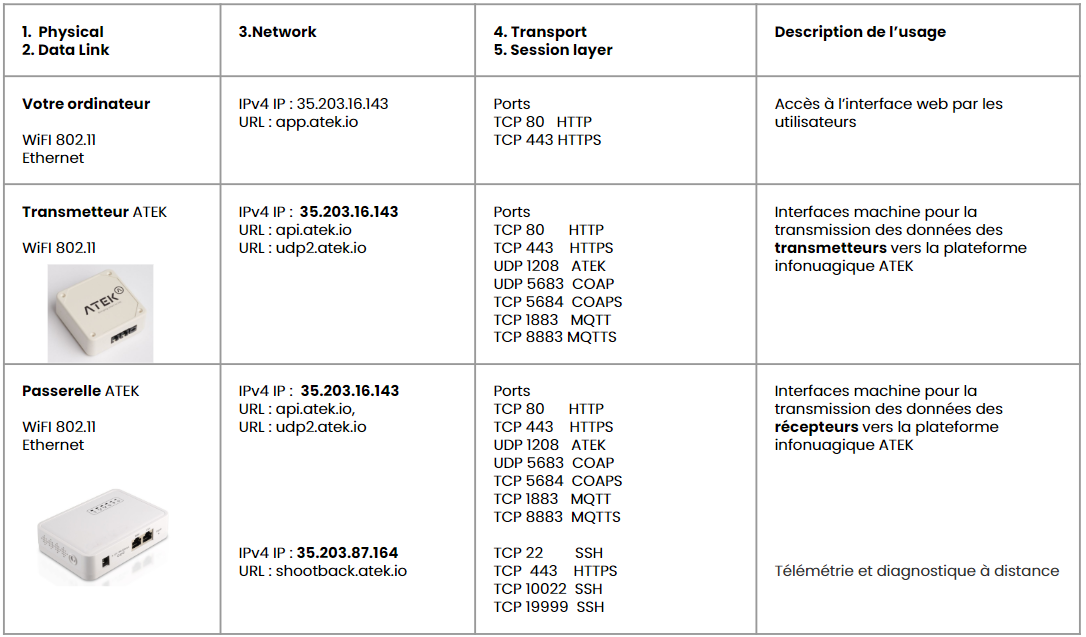

Make sure the IPs and ports shown above are open and accessible from your IT infrastructure.
-
No entry rules are necessary. Communications are outgoing only.
-
SSL inspection should be disabled for these connections.
-
Transmitters do not support http proxies.
-
The IP of the email service must be authorized (whitelist) in order to allow your users to receive ATEK notifications: 149.72.168.117
