Specifications
-
Reading range: 0-20%CO 2
-
Sensor optimized for 5%CO 2 , 37°C, 90%RH
-
High precision temperature and humidity sensor used for compensation
-
Operating and storage conditions
-
Temperature -20 to 60°C
-
Humidity 0 to 100%RH
-
-
Heated sensor prevents condensation
-
Housing designed to prevent splashes
-
Reading speed: 10 seconds
-
Long-term stability: ± 0.1%CO 2 /year
-
Accuracy 5%CO 2 , 37°C, 90%RH
-
CO 2 at 5% ± 0.1%
-
Temperature ± 0.2 °C
-
Humidity ± 2.0%
-
-
Calibration certificate included
Description

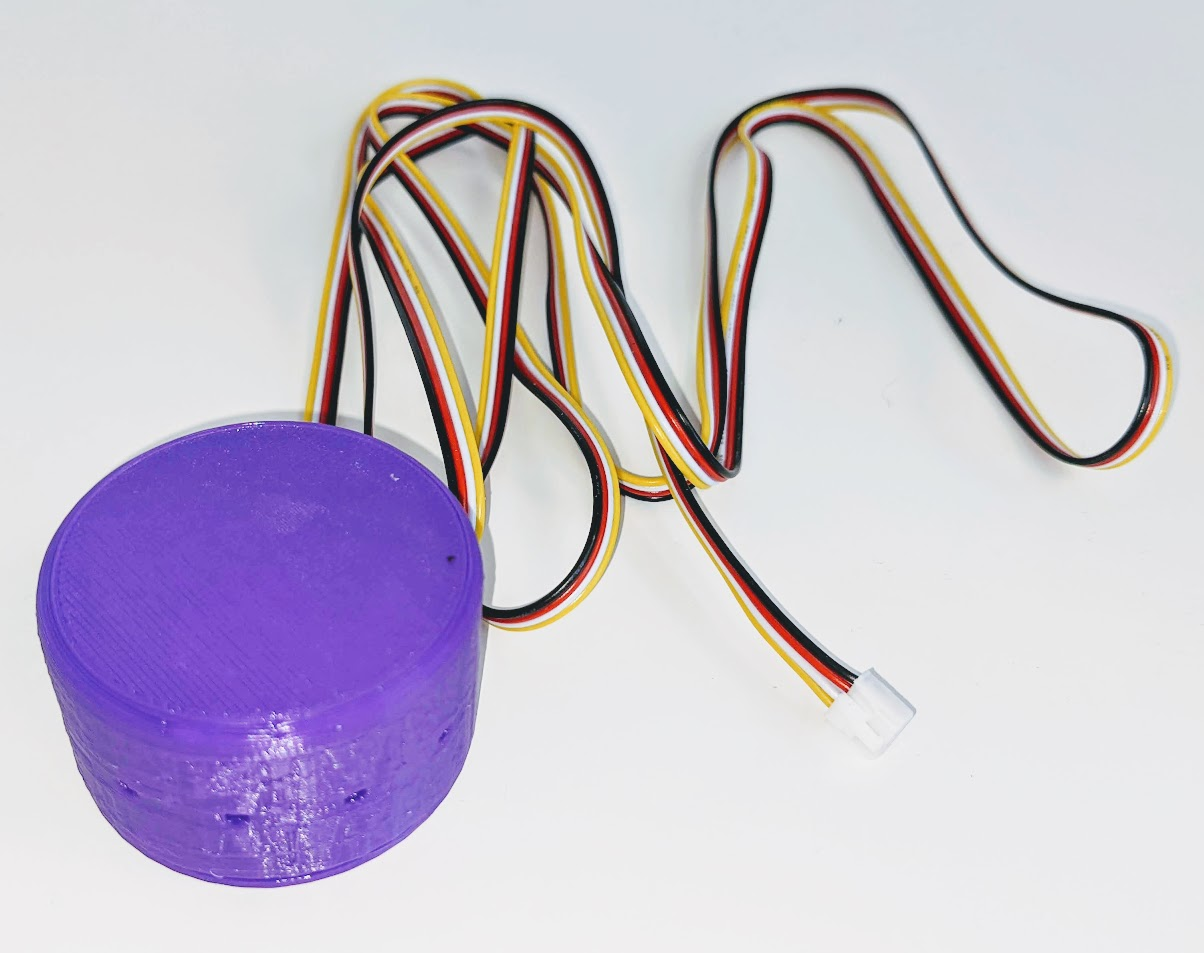

The Incubator CO 2 Monitor is an intelligent probe designed specifically for life science incubator applications where stability, reliability and accuracy are important. The monitor incorporates a high precision temperature and humidity sensor used to compensate for CO 2 readings .
Facility

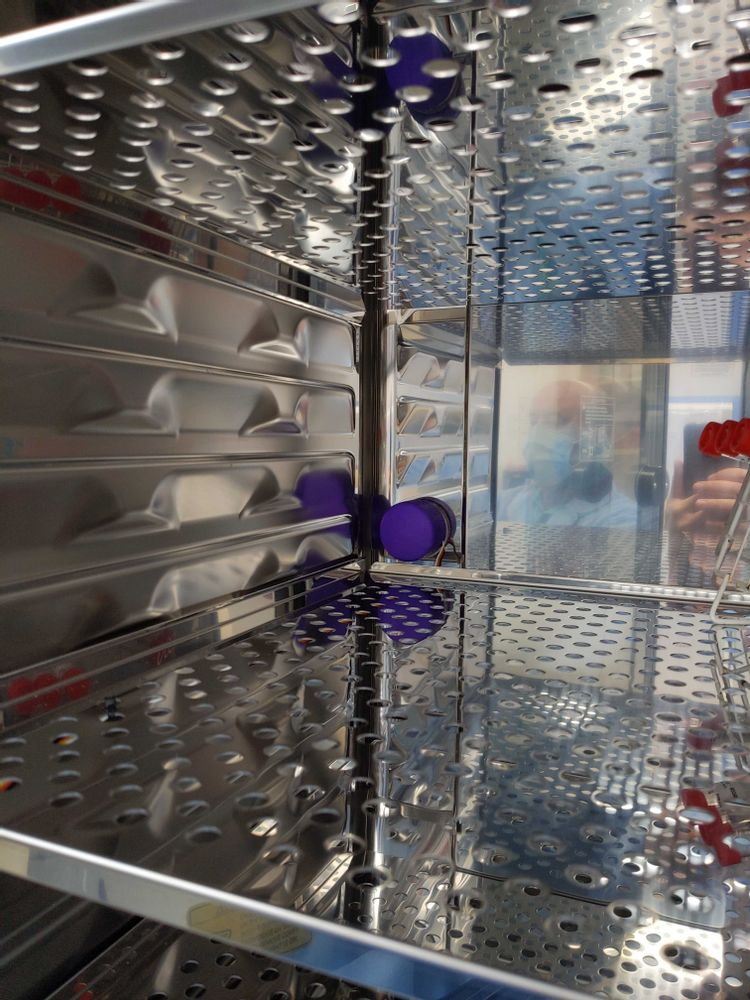

The monitor installs into the incubator via the probe access port or door seal and sits centrally on the shelf.
Operation
The monitor records and transmits the 3 sensor readings, namely CO 2 , temperature and relative humidity to the ATEK platform.
Stérilisation / Décontamination
Retirer le capteur de l’étuve
Le peroxide d’hydrogène à répétition corode le circuit imprimé et causera une mal fonction.
