Specifications
-
Measuring range: -500 to 500 Pa (-2 to 2 inH2O)
-
Resolution: 0.1 Pa
-
Accuracy 3% of reading
Applications
-
White hallways
-
Sterile preparation room
-
SAS
-
Chemical or biological hoods
Description
The ATEK differential pressure transmitter is an essential tool for environments requiring rigorous pressure control, such as airlocks, clean rooms, and chemical or biological hoods.
This sophisticated device measures the pressure difference between two points or zones, helping to maintain optimal conditions for work processes and experiments. Whether you need to maintain positive pressure to prevent the entry of contaminants, or negative pressure to contain potentially hazardous substances, the ATEK differential pressure transmitter offers an accurate and reliable solution.
Integrated into our environmental monitoring platform, it allows you to monitor pressure variations in real time, to be alerted if predefined limits are exceeded and to document this data for your regulatory reports. By ensuring constant monitoring, the ATEK differential pressure transmitter contributes to the safety, efficiency and compliance of your installations.

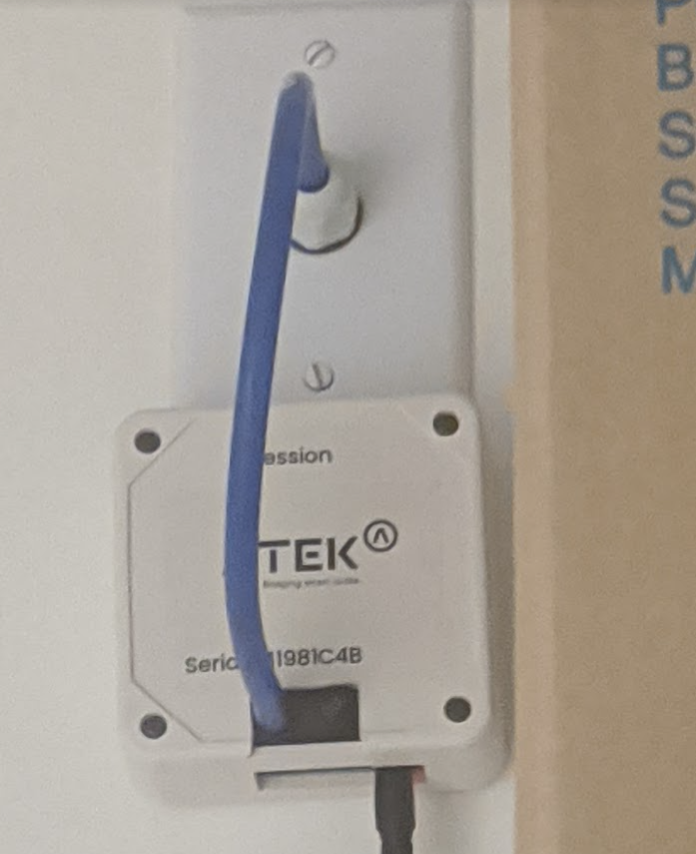

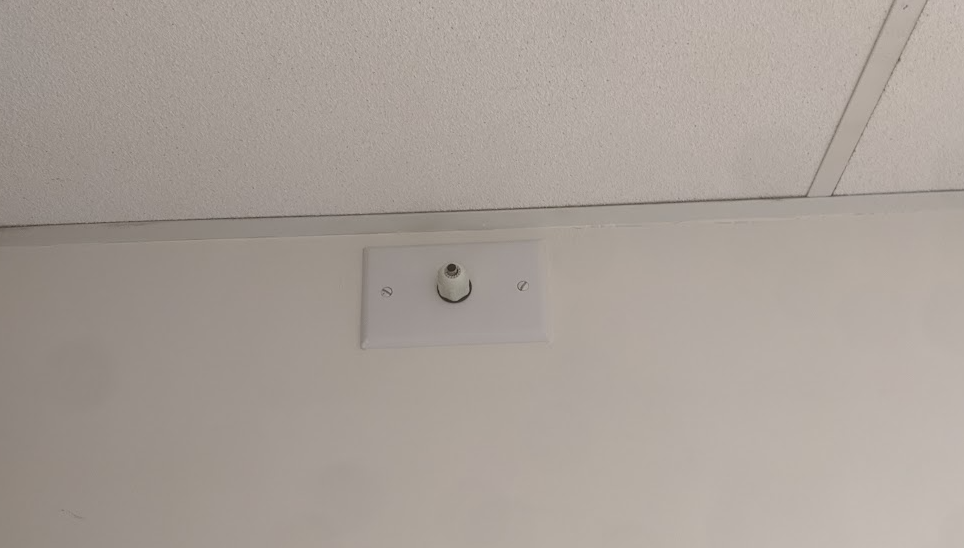

Differential pressure between rooms

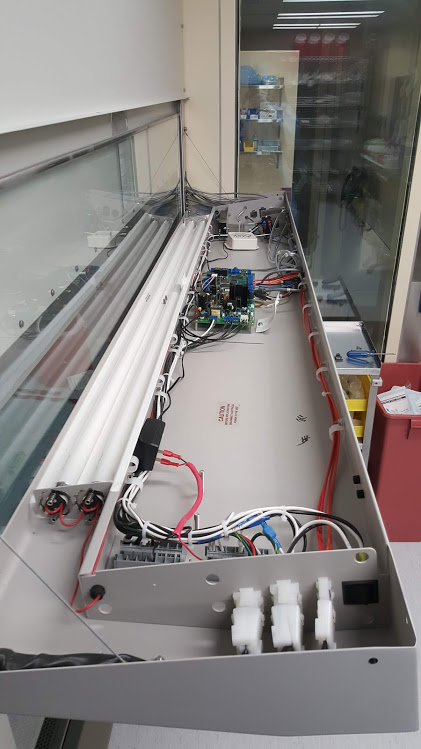

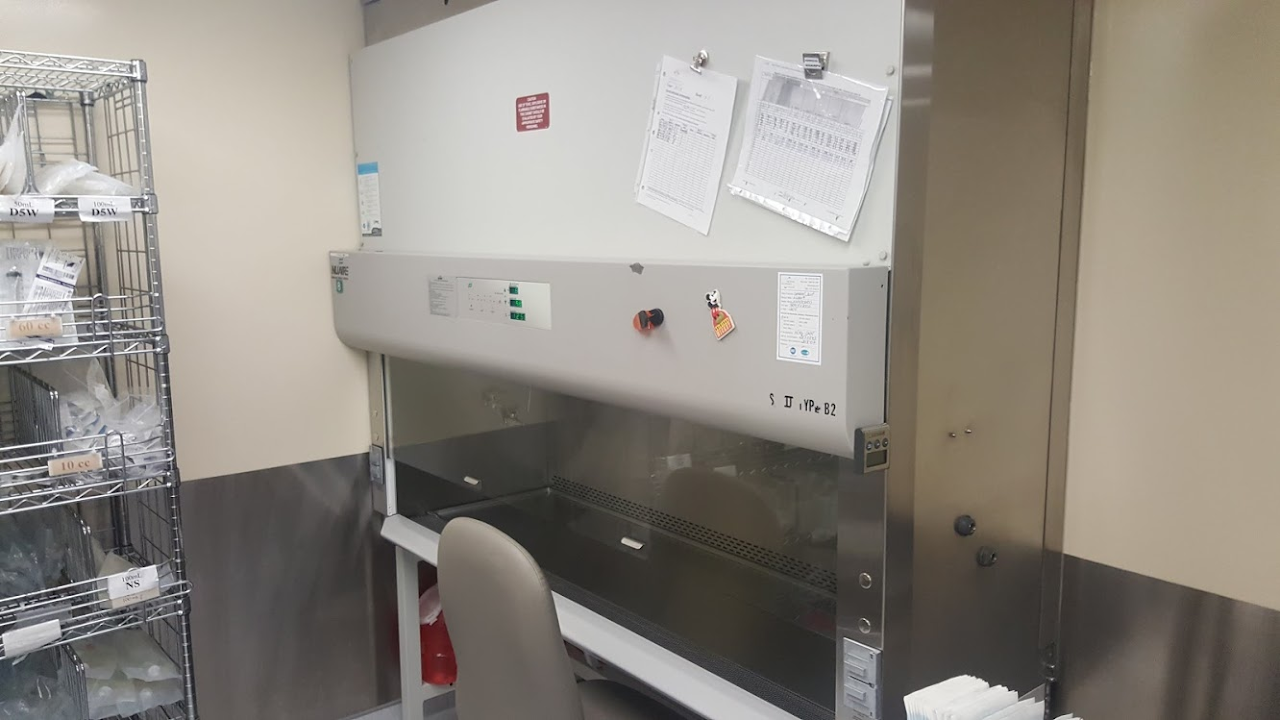

Sterile preparation hood

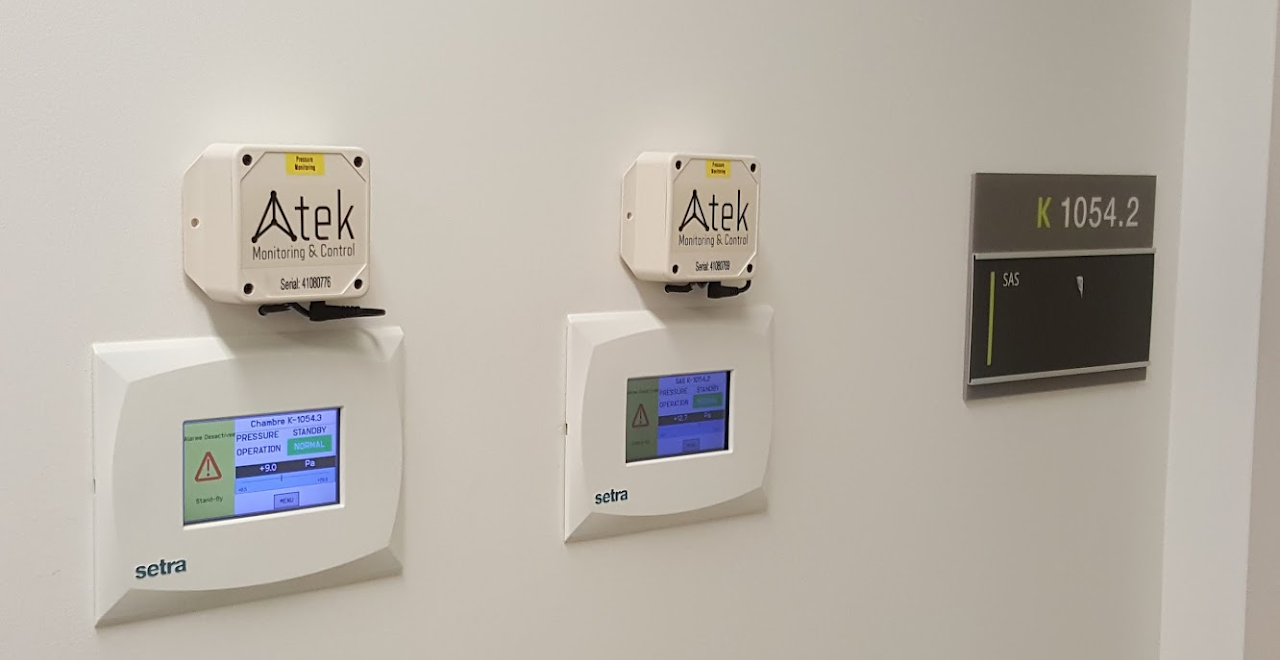

SAS
This photo illustrates how ATEK transmitters can be integrated into the airlock control system. The transmitter is connected to the 4-20mA or 0-10V output of the controller.
