Technical specifications
-
Reading range: 0-25% O 2
-
Accuracy ± 0.01% O 2
-
Resolution ± 0.01% O 2
-
Reading speed: 1 second
-
Long-term stability: ± 0.1% O 2 /year
-
Lifespan 5 years
-
Calibration certificate included
Applications
-
Anaerobic chamber
-
Oven
Description

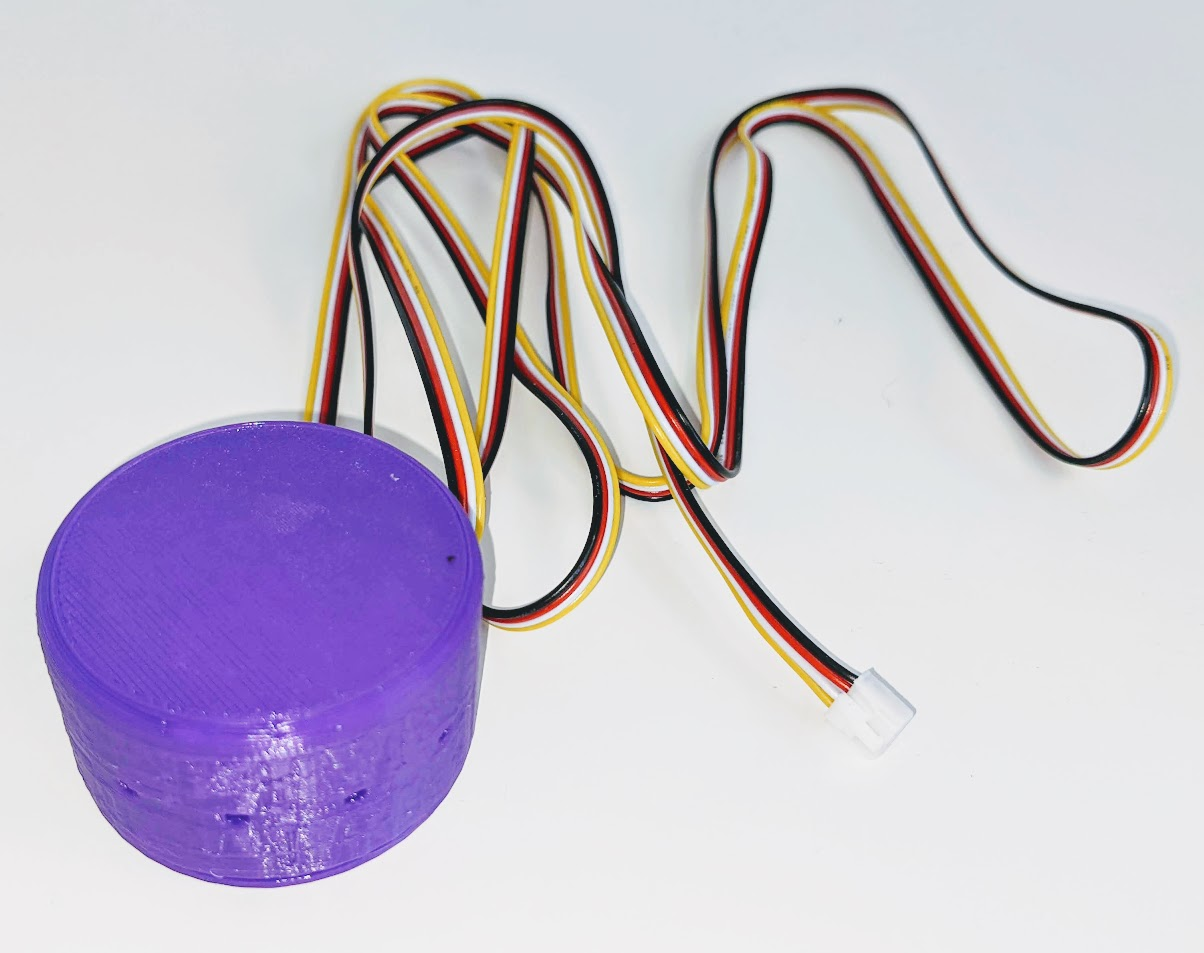

The sensor uses the principle of oxygen fluorescence quenching using UV light. Unlike traditional electrochemical oxygen sensors, using UV light the sensor has a lifespan measured in years instead of months. This makes it perfect for medical or industrial applications. The UV Flux sensor is both oxygen pressure and temperature compensated, allowing precise operation over a wide environmental range without the need for additional system components.
Facility

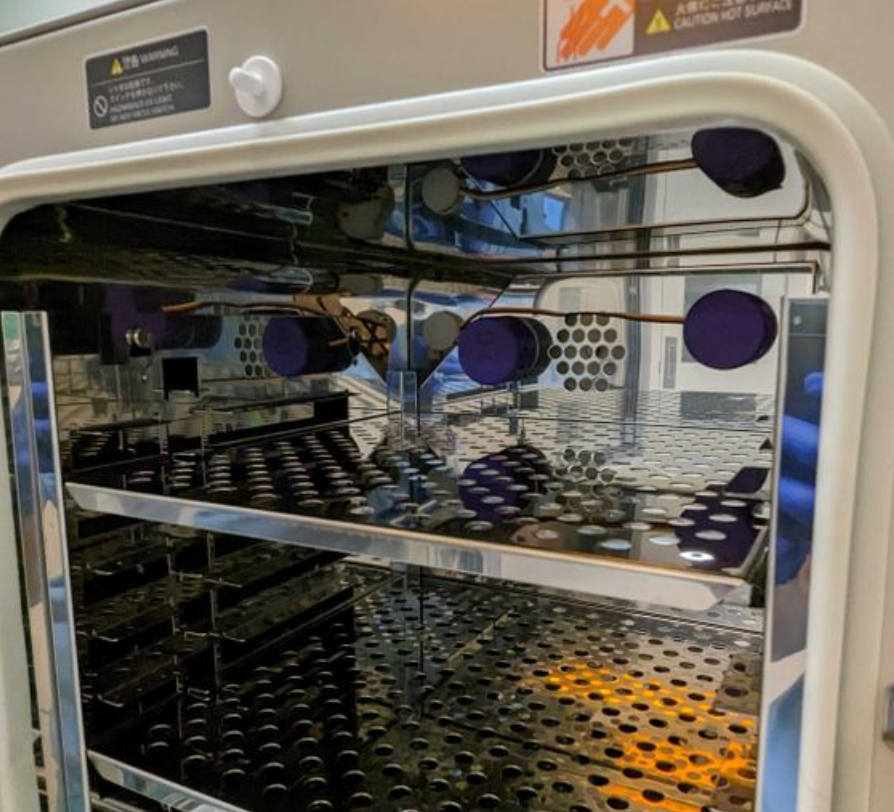

The monitor installs into the equipment via the probe access port or door seal and is placed on the wall at the bottom of the unit .
